Formatting Options with WebAG Automat
The formatting options of WebAG Automat provide you with a simple
and convenient way to create attractive web pages via the browser, without any knowledge
of HTML. In the simplest case you need to do no more than select the initial word and the
final word and then assign the relevant formatting. The required format tags can be
assigned by an administrator. The software package includes a selection of the most common
formatting devices that can also be found in word processors and HTML editors.
Enterprise
WebAG provides specially customized training seminars on the Online Authoring Tool of
System WegAG Automat. Moreover, we have gathered a large amount of know-how on designing
pages produced with the Authoring System. We would be very happy to advise!
How to Call up Formatting
All the components of a page or template page can be accessed from
the edit view in the Authoring System via the Format
link and then formatted any way you like.

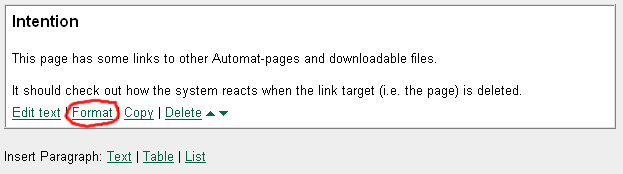

Illustration
1 – Calling up formatting
The Format Editor is very simple to use and can be set
to display formatted content as it will appear on the web page.
Structure of the Editor
The
Format Editor displays the relevant paragraph with any formatting that has already been
applied. Depending on the display mode (simple or enhanced – set under User Options),
you can view images, hyperlinks and text formatting exactly as they appear in page
preview.

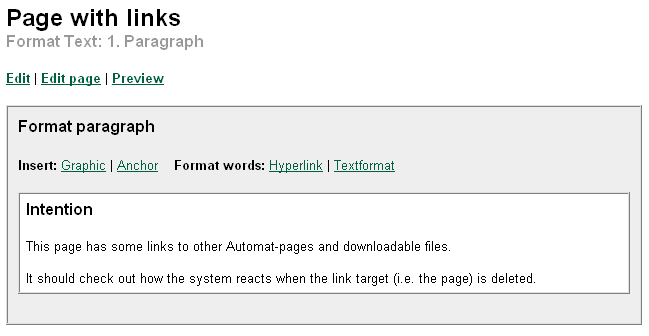

Illustration
2 – Format Editor
Formatting is displayed in the text by means of POSITION CODEs
– {#n} – to mark the beginning and end
of a hyperlink or of text formatting or the position of an image or of a text marker.
POSITION
CODEs can be selected for the editing of the formatting. When you do so, their colour
changes to {#n}.

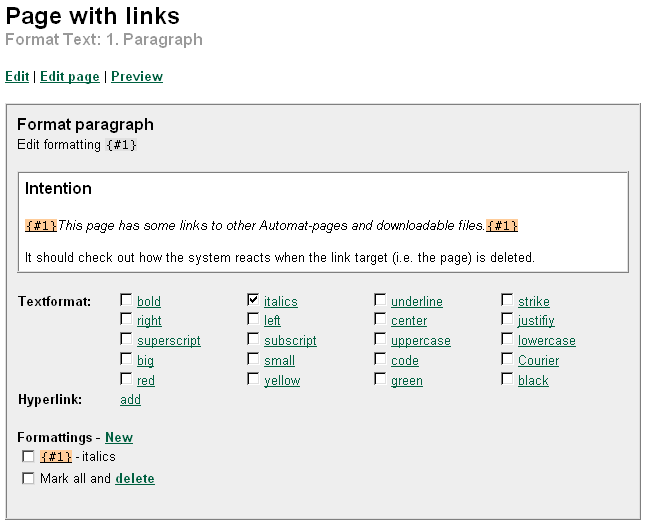

Abbildung 3 - Formatierungs-Editor mit Position Code
The
sequential numbering of the POSITION CODEs is controlled by the system.
Note on the Use of POSITION CODEs
POSITION
CODEs are displayed by the Editor as text in each paragraph, where they can then be moved
around any way you like. However, you cannot delete or insert them manually.

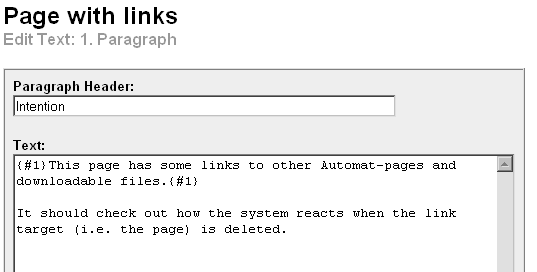

Illustration
4 - POSITION CODEs in the Editor
Further Examples of Page Formatting
Formatting a Table
Our example shows the formatting of a table of sales figures, copied
from Excel to the Table Editor of WebAG Automat via the Clipboard.

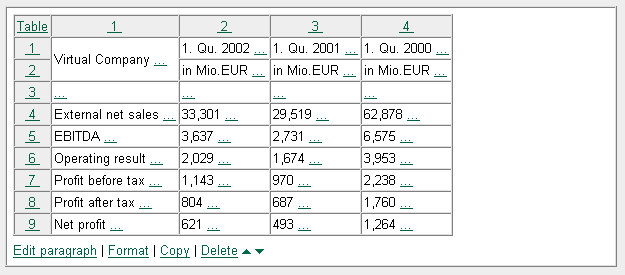

Illustration
5 – Unformatted table in the Editor
This
table is displayed with text layout in the browser by the Automat table formatting
function, as follows:

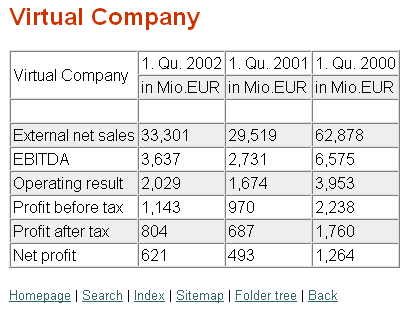

Illustration
6 - Table as a web page
Further formatting can be achieved via the Format Editor
First,
format the text of an entire row in a smaller font. Create a new text format and select
the 2nd row as shown in the example. All subsequent text formats will relate to the entire
row.

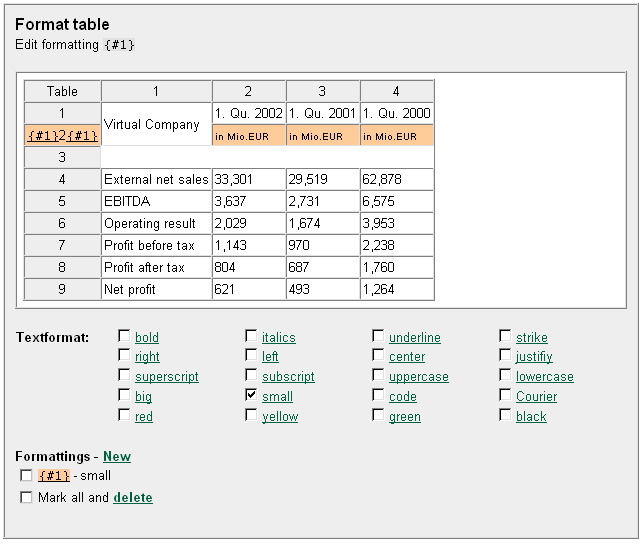

Illustration
7 – Formatting a row in a table
Next, format the header of the table in bold. In our example, this
should be the company name “Virtuell-AG”, which extends across two rows.

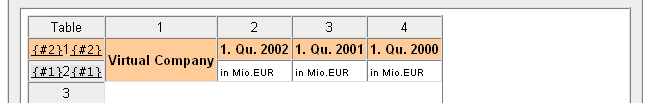

Illustration
8 – Formatting a row in a table
We want to display “Virtuell-AG” bigger and in blue, as
cell content, and negative figures in red. To do so, we create different text formats for
each cell content, limiting the formatting in each case by means of a start and end word.
The
finished formatted sales table should look as follows:

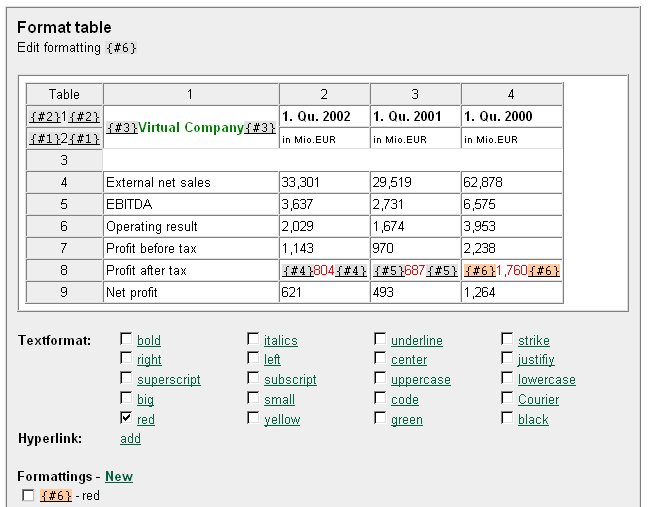

Illustration
9 – Formatting rows in a table

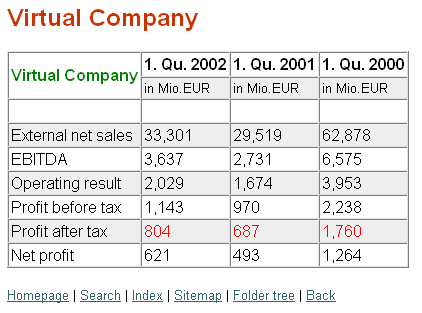

The
finished formatted table in the browser:
Abbildung 10 - formatierte Tabelle
Lists
To
design your own navigation pages with links to documents in a folder structure, we would
recommend creating paragraphs of the list type and to implement each item as a hyperlink.

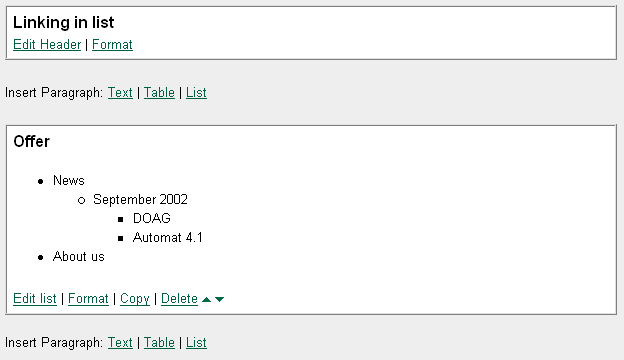

Illustration
11 – Unformatted list
When marking words in a list, it is important that the final word
should be in the same line as the first word. It is not possible to have markings
extending across several list items.
By
marking the list items Vortrag DOAG (DOAG Talk) or Automat 4.1, it is
possible to assign links to them from the document folder hierarchy.

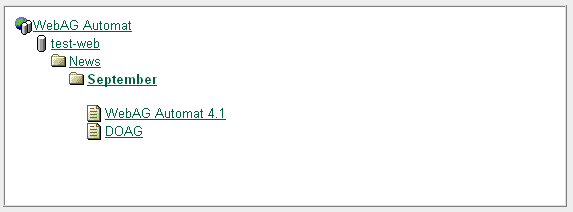

Illustration
12 – Linking a list
In addition, you can specify the target (window name) in which the
link is to be opened and whether to go to a text marker (anchor).
This makes it possible to create a customized table of contents in
cases where insufficient options are provided by the sitemap and by automatically created
folders.
Link management and authorization assignment ensure that links are
only provided if the relevant site and authorization are actually available.
Templates
Templates
are formatted in the Template Editor, described elsewhere. It has now been expanded to
include a Format mode that toggles between the editing icons ¶… and …¶ for
calling up either the Editor or the Format Editor.

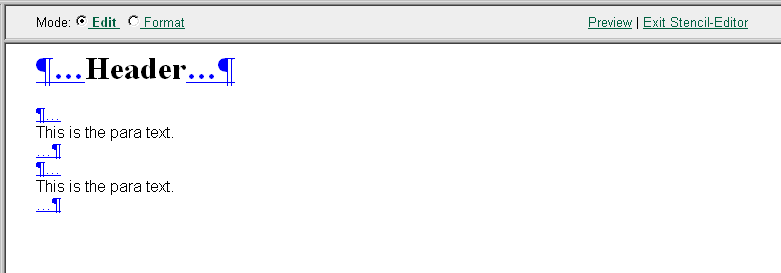

Illustration
13 – Formatting templates
Depending on the mode, these icons allow either the editing or
formatting of all paragraphs available in a template.
Create Your Own Format Tags (Administrators Only)
For administrators, the Web Design menu in the System folder
has been extended to include the item Format Tags.
Each
format tag must have an English and German name as well as a piece of HTML code with
instructions for opening and closing the tag.

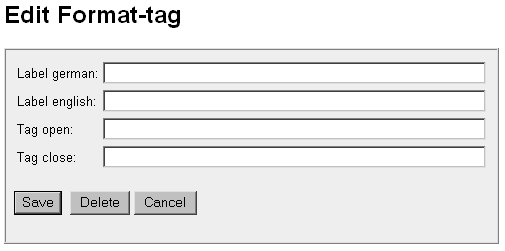

Illustration
14 – Editing a format tag
Standard Format Tags
The basic installation of WebAG Automat 4.1 provides a series of
standard tags for the formatting of text and paragraphs. These tags can be edited, deleted
and expanded as and when required.
Format tags can be arranged in any order, for instance to group
together individual tags.
Caution:
When a format tag is deleted, it is automatically removed from the paragraph in
which it occurred.
Changes to format tags take immediate effect on the paragraphs in which they are used.

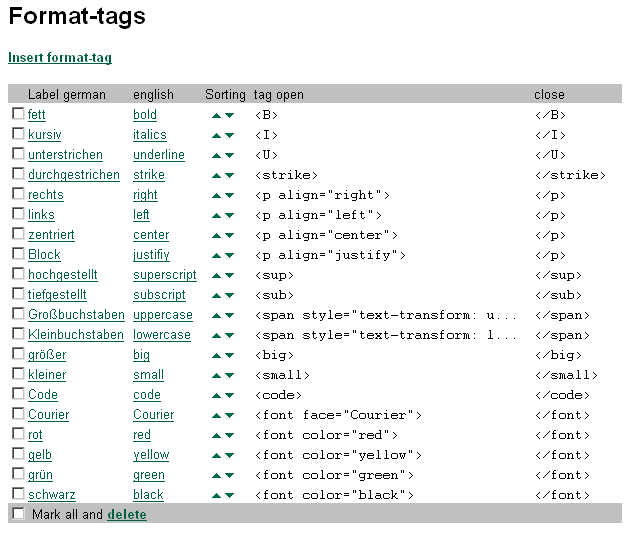

Illustration
15 - Standard format tags
